Basingstoke STW

Project Overview

Early collaboration allowed for the innovation of the roof and gaseous zones of the Digesters. The Digested Sludge Collection Tank was manufactured in Stainless steel to provide a more resilient tank system.

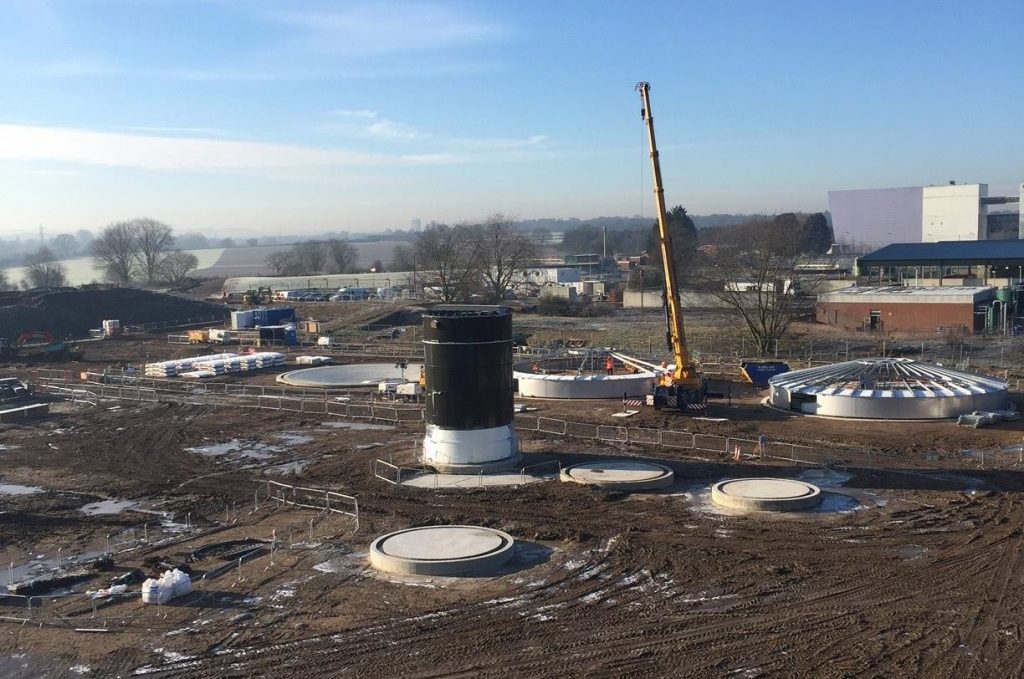

Roof and top ring installed at ground level avoiding risks working at height.

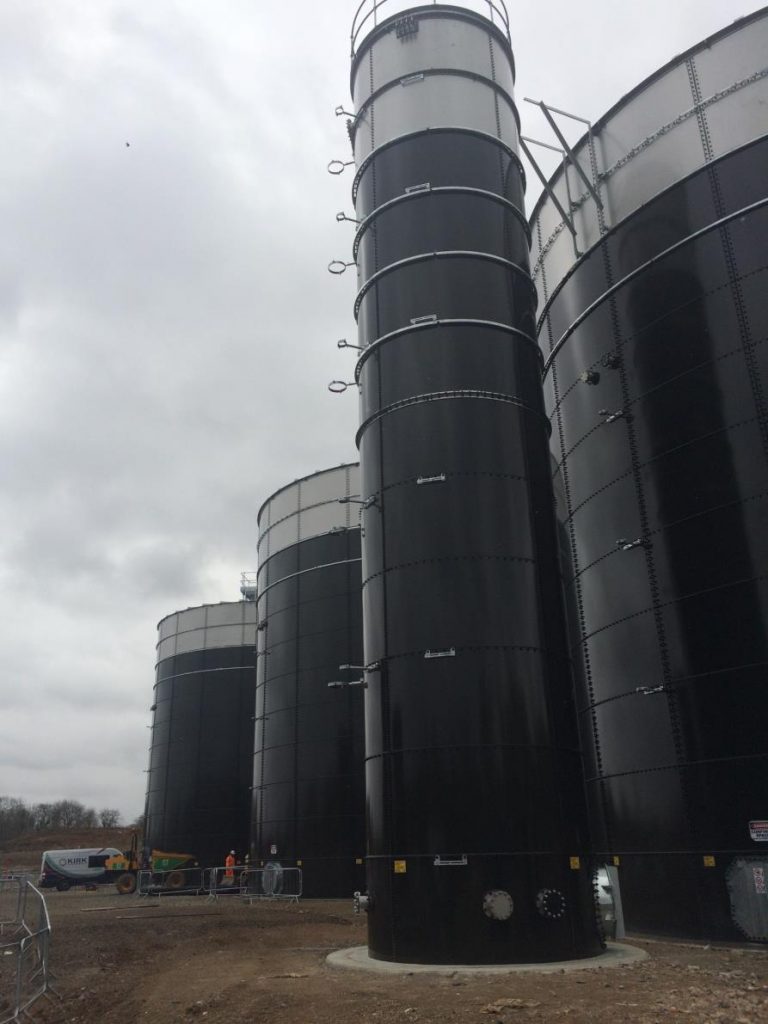

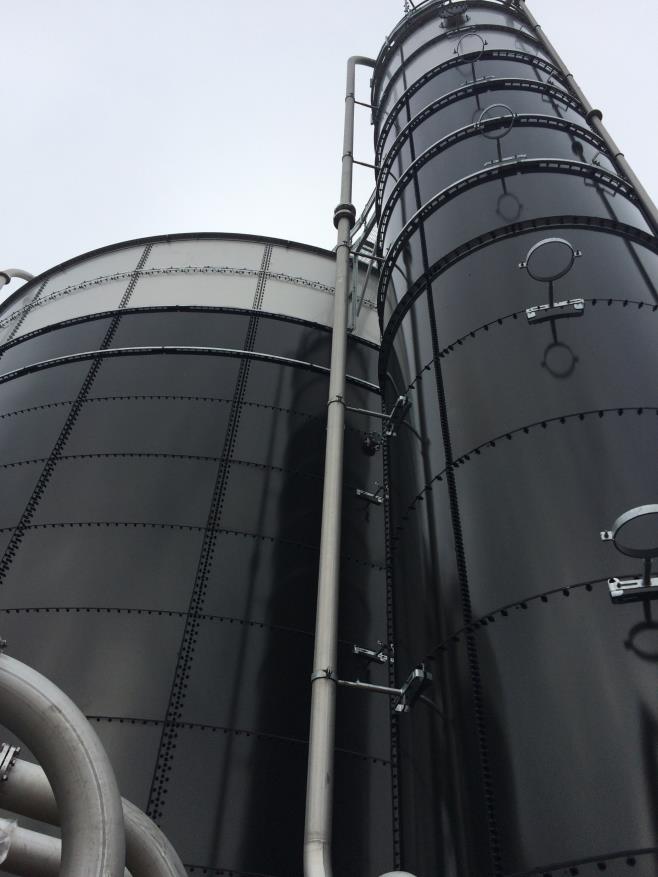

Innovative solution for the Digested Sludge Collection Tank, with a small diameter where specialist construction methods were required. The tank is now known as the ‘Missile’ tank

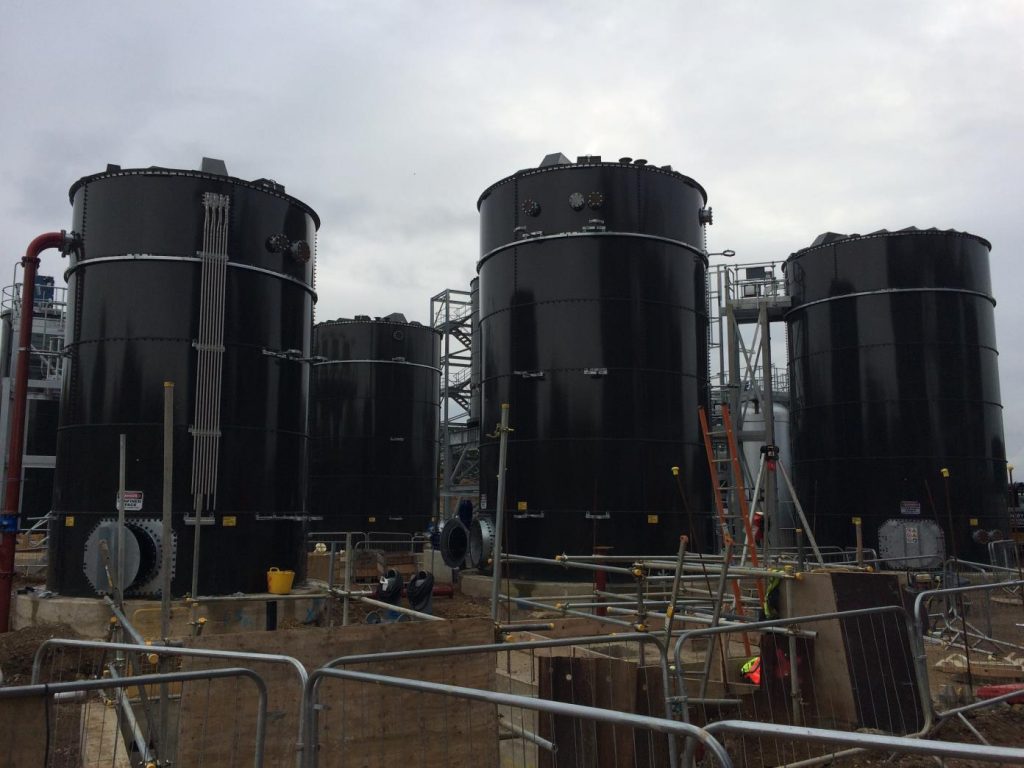

Tank package included several full Glass Fused to Steel Tanks.
All design, engineering and installation was carried out inhouse to ensure the highest quality of service to the client and the highest standards when installing on site.

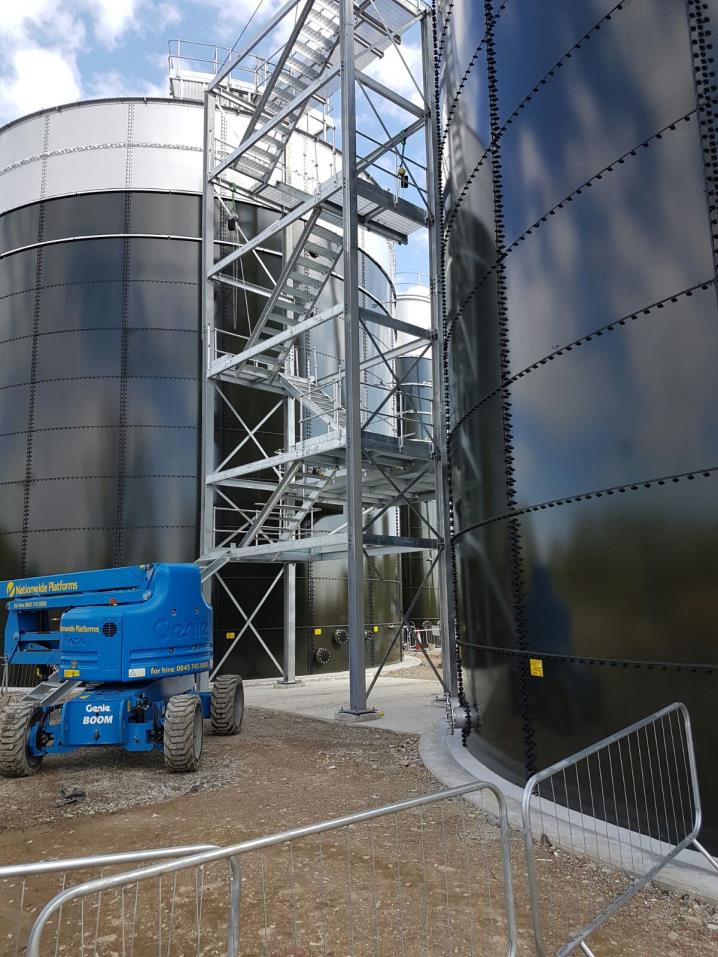

Our package included all the required Access Steelwork as well as Limpet Chambers and Pressure Relief Valves, eliminating traditional interface issues.

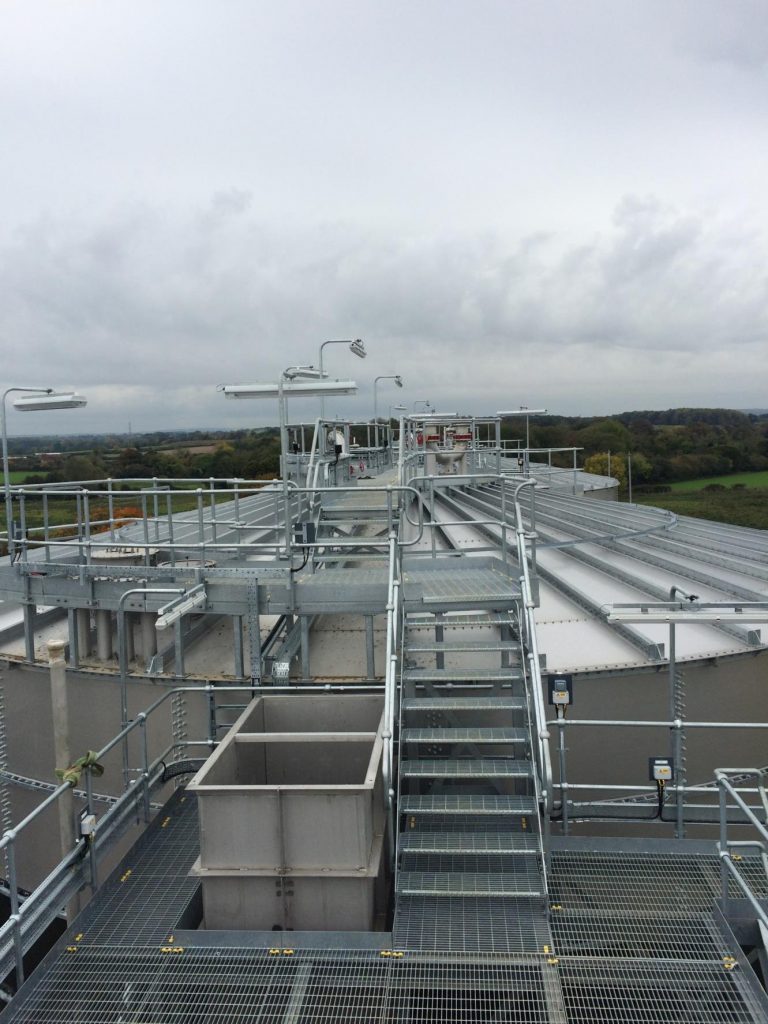

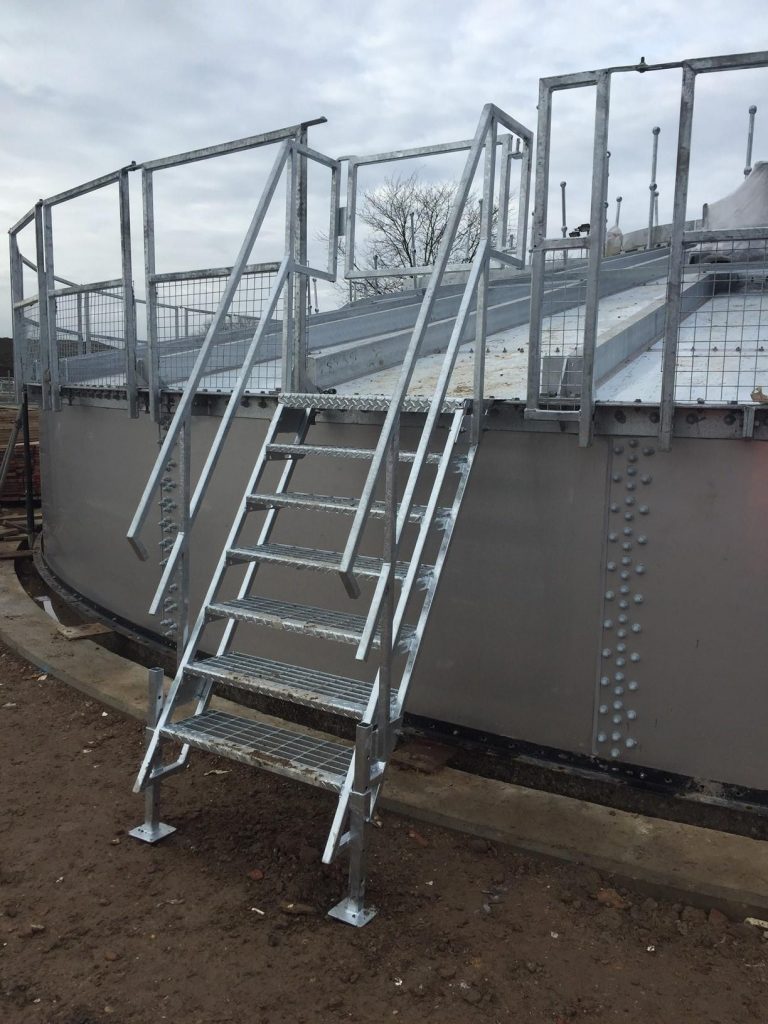

Access walkway on the Digester roof installed at low level to reduce working at height issues and improve commercial efficiencies including an expedited programme at the time of install.

Project Headlines

  • Collaborative partnership approach
  • Early engagement, allowing for innovative solutions
  • Packaged solution
Client

Thames Water PLC

End User

Thames Water PLC

Value
  • £2,500,000.00
Scope

Design, Manufacture & Installation of Multiple Tank Package

Tank
  • 3-OFF Digester Tanks
  • 1-OFF Digested Sludge Collection Tower
  • 1-OFF Imported Liquid Sludge Tank
  • 1-OFF Primary / SAS Collection Tank
  • 1-OFF Sludge Buffer Tank
  • 1-OFF Screened Sludge Buffer Tank
  • 1-OFF Final Effluent Buffer Tank
  • 1-OFF Potable Water Buffer Tank
Diameter
  • 3-OFF Digester Tanks: 16,224mm
  • 1-OFF Digested Sludge Collection Tower: 3,418mm
  • 1-OFF Imported Liquid Sludge Tank: 4,269mm
  • 1-OFF Primary / SAS Collection Tank: 3,416mm
  • 1-OFF Sludge Buffer Tank: 5,123mm
  • 1-OFF Screened Sludge Buffer Tank: 5,123mm
  • 1-OFF Final Effluent Buffer Tank: 5,123mm
  • 1-OFF Potable Water Buffer Tank: 3,416mm
Height
  • 3-OFF Digester Tanks: 16,718mm
  • 1-OFF Digested Sludge Collection Tower: 16,718mm
  • 1-OFF Imported Liquid Sludge Tank: 6,918mm
  • 1-OFF Primary / SAS Collection Tank: 5,518mm
  • 1-OFF Sludge Buffer Tank: 8,318mm
  • 1-OFF Screened Sludge Buffer Tank: 8,318mm
  • 1-OFF Final Effluent Buffer Tank: 8,318mm
  • 1-OFF Potable Water Buffer Tank: 4,780mm
Volume
  • 3-OFF Digester Tanks: 3,146m³
  • 1-OFF Digested Sludge Collection Tower: 139.4m³
  • 1-OFF Imported Liquid Sludge Tank: 86.1m³
  • 1-OFF Primary / SAS Collection Tank: 42.3m³
  • 1-OFF Sludge Buffer Tank: 152.9m³
  • 1-OFF Screened Sludge Buffer Tank: 152.9m³
  • 1-OFF Final Effluent Buffer Tank: 140.9m³
  • 1-OFF Potable Water Buffer Tank: 35.5m³
